Ti - Gear (thermal)

PLEASE NOTE !

Although the "Thermal" products available here are often assumed to be for "Government Only" purchase, they are ITAR free & COMPLETELY LEGAL for PRIVATE PURCHASE & USE IN AUSTRALIA.


Due to constant fluctuations in $Au / $US values, all pricing is listed in $US.

PLEASE CALL US FOR OUR PRICING ARRANGEMENTS.
Price and Specifications can change without notice.


*** NEW ***

12 micron Scopes.

12 micron >>

The TI - GEAR range of thermal products built in CANADA, have already proven to be superior to other thermal equipment currently available.


All TI-GEAR scopes are suitable for both small and large-size caliber rifles, this also includes machine guns, whether single or repetitive shooting.


These GSCI thermal scopes perform very close to the level of the specifically built military products and are therefore eminently suitable for serious professional use, private or government. TI-GEAR scopes provide economically priced professional products without compromising the high standards that GSCI products are renowned for.

These thermal scopes come in 17 micron versions recommended for the professional user, and are now available in 12 micron versions suited all users.


A feature of all GSCI thermal products, is the NUC,  (Non-uniformity Correction). Automatic, silent, no clicks, no calibration break, and has no shutter to fail at a critical point, rendering the scope inoperable.

Calibration is smooth and continuous and does not distract the user during operation. This allows a shooter to take the "shot" when the shooter is ready and not be controlled by the scope.

GSCI products all use standard "off the shelf" batteries, and do NOT depend on special proprietary battery packs available only from the manufacturer.

They also have an external power capability of 5 - 15V.

These high performance thermal scopes use a full aluminium body for reliable service in the field.


All Ti - Gear S3/6100 scopes come complete with the MAK mount including the "standard" extension adapter.


We strongly recommend that the MAK mount is used with 75 mm models, especially on high recoiling firearms.

   (Mounting options can be discussed to suit situations as required).


ARMS QD mount and extension (available by request).


All Professional Ti scope models contain the following features -

  •  Time / date stamp.
  •  DDE   Digital Detail Enhancement.
  •  WDR  Wide Dynamic Range.
  •  SIF     FOV.
  • ADJUSTABLE  BRIGHTNESS LEVEL for reticle and icons.




 Options     Head up display.       $225 US + Au GST

                  Internal recording.   $263 US + Au GST



Options must be ordered with initial order due to hardware requirements.

DDE, a special feature that provides a stunningly sharp target image in adverse conditions.


WDR, wide dynamic range is used when the target and background have an extreme temperature difference.


SIF (Shot Initiated Field of View), a programmable feature so that when using a "zoom" setting, the scope will immediately revert to the next lower magnification after a shot, to provide a wider field of view for the duration of the pre-programmed time, before returning to the original  setting, as required.


HUD. Head up display provides compass, plus roll and tilt indicators.

                       .........



ALL GSCI THERMAL DEVICES ARE SUPPLIED WITH A HARD CASE, SOFT CASE, POWER AND VIDEO OUT CABLES.


For options & accessories, go to -

 "ACCESSORIES"

ACCESSORIES >>

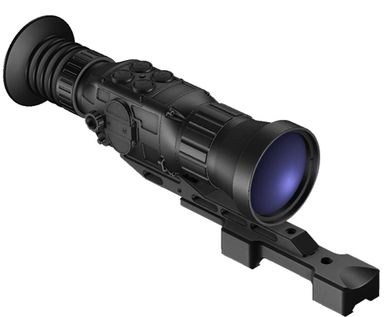

17 micron Ti - Gear Scopes

100 mm

100 mm

100 mm



S-6100


  • Lens           100 mm.
  • Lens           17 micron
  • FPA           640x480
  • Optical        4.0 X
  • Zoom          X1,2,4,8
  • Focus          4.0m - infinity
  • Display       AMOLED 800x600
  • Reticles       8+8
  • Detection    3300 m (human)
  • Batteries     2 X CR123
  • Battery       Up to 7 Hrs
  • Protection   IP66 / 67
  • Weight        750 grams


                $8990 US + AU GST                                  #TI-65/64/S/953

  Option [3] MAK MOUNT INCLUDED.


.......................


S-3100



S-3100 Version also available.


       384 X 288 17 micron. 6 X optical magnification.

     $7465 US + AU GST

     #TI-52/38/S/825


Option [3] MAK MOUNT INCLUDED.


  .................


See Monoculars

Ti - Gear monoculars >>

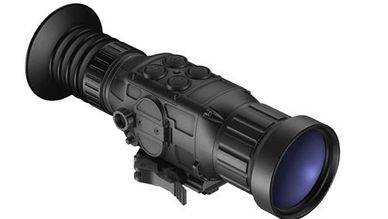

75 mm

100 mm

100 mm



S-675


  • Lens           75 mm.
  • FPA           17 micron
  • FPA           640x480
  • Optical        3.0  X
  • Zoom          X1,2,4,8
  • Focus          3m - Infinity
  • Display       AMOLED 800x600
  • Reticles       8+8 patterns
  • Detection    2500 m (Human)
  • Batteries     2 X CR123
  • Batteries     Up to 7 Hrs
  • Protection   IP66
  • Weight        498 grams


$7965 US + AU GST

#TI-58/64/S/340

Option [3] MAK MOUNT INCLUDED.


..........................



S-375


  • Lens         75 mm.
  • FPA         17 micron
  • FPA         384x288
  • Optical      4.5 X
  • Zoom        X1,2,4
  • Focus        3m - Infinity
  • Display     AMOLED 800x600
  • Reticles     8+8 patterns
  • Detection   2500 m (Human)
  • Batteries    2 X CR123
  • Batteries    Up to 7 Hrs
  • Protection  IP66
  • Weight       498 grams


         $6439 US + AU GST

#TI-47/38/S/071

Option [3] MAK MOUNT INCLUDED.


50 mm

100 mm

50 mm






S-650F


  • Lens          50 mm.
  • FPA          17 micron
  • FPA          640x480
  • Optical       2.0 X
  • Zoom         X1,2,4,8
  • Focus         1.5m - Infinity
  • Display      AMOLED 800x600
  • Reticles      8+8 patterns
  • Detection   1660 m (Human)
  • Batteries    2 X CR123
  • Batteries    Up to 7 Hrs
  • Protection  IP66
  • Weight       458 grams


$7921 US + AU GST

#TI-58/64/S/424

Option [2] MOUNT INCLUDED.


..........................


S-350F


  • Lens          50 mm.
  • FPA          17 micron
  • FPA          384x288
  • Optical       3.0 X
  • Zoom         X1,2,4
  • Focus         1.5m - Infinity
  • Display      AMOLED 800x600
  • Reticles      8+8 patterns
  • Detection   1660 m (Human)
  • Batteries    2 X CR123
  • Batteries    Up to 7 Hrs
  • Protection  IP66
  • Weight       458 grams


$6395 US + AU GST

  #TI-47/38/S/040

Option [2] MOUNT INCLUDED.

<< GSCI PRODUCTS

NEW Ti - 12 micron scopes

12 micron scopes >>

17 micron "CLIP-ON" SCOPES

C675

C345 & M4

C345 & M4

Rail mount S675 Clip-on scope

C345 & M4

C345 & M4

C345 & M4

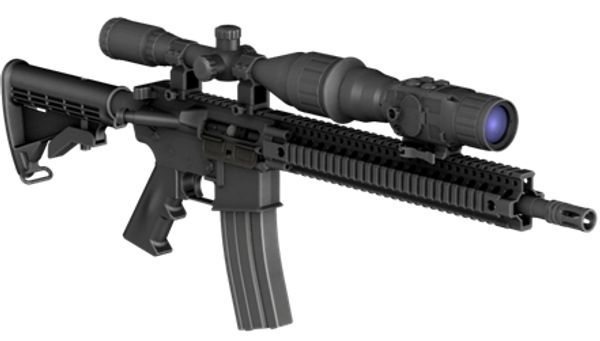

S345 rail mount option on an M4 rifle.

GSCI clipon thermal scope

Ti - Gear Clip-on scopes

These models are available in four versions.

                      (C675) shown.

C345 -    45 mm focal length lens, 384x288 FPA

C675 -    75 mm focal length lens, 640x480 FPA

C3100 - 100 mm focal length lens, 384x288 FPA

C6100 - 100 mm focal length lens, 640x480 FPA

These scopes are designed for use in front of a normal day scope and have alternative mounting options. For a short focal length and low recoil, direct attachment to the day

scope may be considered, with the longer focal lengths, rail mounting is required.

Designed to have Unity magnification as per the focal length lens, for use with 3 - 12 X day scopes with no need for zeroing unless digital magnification is required.


$ POA US + Au GST

# T-XXXXCXX


Also see Ti-Monoculars

Ti-Monoculars >>
