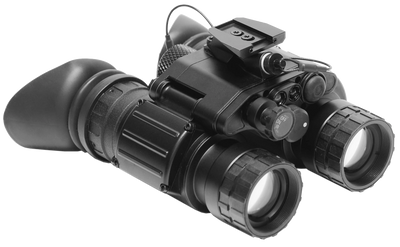

PVS-31C-MOD

IMAGE INTENSIFIER TUBES: GEN 2+, GEN 3, ‡ ECHO, ‡ 4G

Autogating and White Phosphor options are available with selected tubes.

Also available as the PVS-31C-4B model with the LUX type push buttons.

These items may be had with GSCI VIVID-UPG high performance lenses.

Optical Magnification                                                    1X

Objective Lens Focal Length                                        27mm

Focusing Range                                                            0.25m .. Infinity

Diopter Adjustment Range                                        - 6 / + 4

Interpupillary Adjustment                                            50mm - 90mm

Built-In IR Illuminator                                                 Yes

Momentary IR-On Button                                             Yes

IR-On Indicator                                                            Yes

Manual Gain Control (MGC)                                         Optional *

MIL-SPEC Switch                                                       Yes

Bright Light Protection                                                Yes

Automatic Light Overload Shut-Off System                 Yes

Low Battery Indicator                                                  Yes

Stow Safety Feature                                                     Yes

Flip-Up-Off Feature                                                     Yes

Selective Channel Engagement                                     Yes

Power Source                                                               1pc AA or 1pc CR123

Any Polarity Battery Insertion                                     Yes

Battery Life                                                                  40 Hours

External Power Supply                                                 4VDC .. 15VDC

Dimensions                                                                   112x105x70mm

Weight                                                                          650 grams

Operating Temperature                                               -40°C - +50°C

Warranty                                                                     7 Years, Limited

                   $ POA $ US + Au GST

                   # PVOOG19
