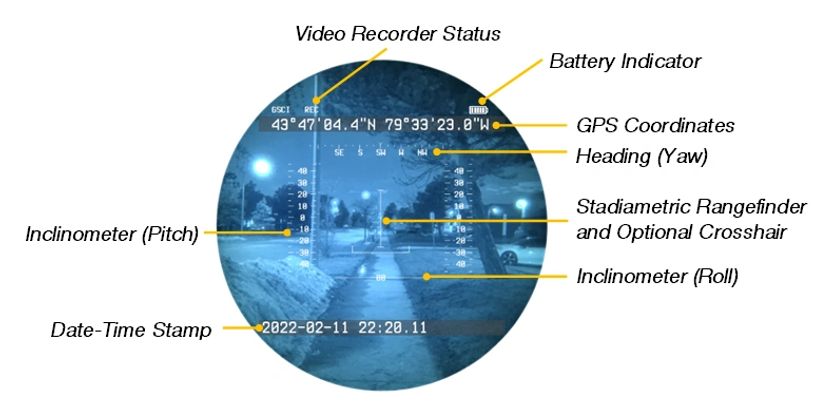

Each of the display elements can be displayed or hidden via the menu, preventing operator distraction.
These modules, can be fitted with an "eye piece" as a stand alone device or fitted to a night vision device such as the PVS 14C.
PU / PD. CD / CU modules fitted with an eye piece as a stand alone device.
CD / CU and PVS 14C.
TECHNICAL DATA
Video Streaming Options. Video-In/Video-Out
Fast Frame Rate 50fps, no lags or delays.
MULTIPHOSPHOR White Phosphor/ Green Phosphor, IIT-independent
Colour Modes Auto, Full Colour, Grayscale, WP/GP
Compass Yes: Magnetic and Gyro-Compass
GPS Yes: Degrees-Minutes-Seconds, Speed Reading
Stow Safety Feature: Yes
Stadiametric Rangefinder: Yes
Auto Power Off Yes: Programmable
Internal Display 0.6-Inch Diagonal, AMOLED, Colour 800x600
Brightness Control Manual
Sensitivity Automatic/Manual
Memory 32GB Micro SD removable card.
Power Source 1pc CR123, battery not included
External Power Port 4VDC .. 15VDC
Battery Life Up to 2.5 Hours with CR123 Battery
Dimensions 70x50x58mm
Mass <135 grams
Operating Temperature -35°C .. +60°C
Storage Temperature -40°C .. +70°C
Mechanical and Optical Fitting Standard AN/PVS-14 compatible
Immersion IP67, purging ready
Environmental MIL-STD-810G
MTAR - HUD - CU
$1815 US + Au GST
MTAR - HUD - CD
$1815 US + Au GST
MTAR - HUD - PU (Stand alone).
$1995 US + Au GST
MTAR - HUD - PD (Stand alone).
$1995 US + Au GST
Note. The XD and XU versions differ only with the thread type required.
