LUX - 14

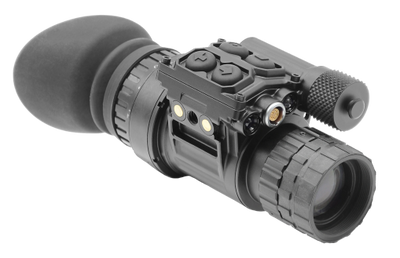

LUX - 14 IMAGE INTENSIFYING MONOCULAR

The LUX - 14 is a new updated variation of PVS 14 monocular, providing

push button controls.

Also available as LUX - 14L with upgraded GSCI - VIVID lenses.

Enquire about tube and FOM options.

These units can also be fitted with the MTAR - HUD if required.



       TECHNICAL DATA

Optical Magnification                  1X

Objective Lens                            27mm, f/1.2

Field Of View                             40 Deg

Focusing Range                          0.25m - Infinity

Diopter Adjustment Range        -6 / +2

Digital Push Button Controls     Yes

Built-ln lR Illuminator                Yes 950 nm

lR-On Indicator                          Yes: concealed into FOV

3-Position Switch                       Yes: Off / On / IR

Bright Light Protection              Yes

Bright Light Sensor                    Built in

Low Battery lndicator                 Yes: concealed into FOV

Stow Safety Feature                   Yes

FIip-Up-Off Feature                   Yes

Power Source *                           1pc AA / Optional MPV-240

External Power Port Optional:    4VDC – 15VDC

Battery life on 1x AA                 40 Hours

Battery Life on MVP-240           240 Hours

Environmental Protection           Waterproof

Dimensions                                 108 x 58 x 51mm

Weight                                        202 grams

Operating Temperature              -40 to +50 Deg

Made ln Canada                           ITAR Free


$ POA US + Au GST

# PV00B31
